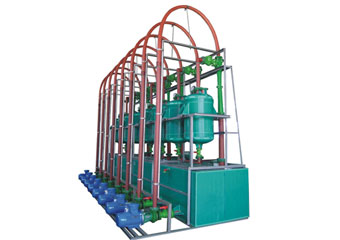

Product name:RPP Water jet vacuum unit set(Vertical/horizontal)
| Type:Vacuum equipment | ||
| Performance data | Flow range | m3/h |
| Lift range | ||
| Medium temperature | ||
| Environment temperature | ||
| Maximum working pressure | ||
| Motor data | Matched power | 1.1-110KW |
| Voltage | 380V | |
| Frequency | 50-60HZ | |
| Number of revolutions | 1450/2900/r/min | |
| Degree of protection | IP54 | |
| Insulation class | F | |
| Material | Pump body, pump cover, impeller | |
| Pump shaft | ||
| Mechanical seal | ||
- Xin’anjiang water jet vacuum pump and air jet pump are patented products developed by us and inject molded from RPP. The steam jet Venturi tube is steel lined graphite. The pump can pump caustic gases
- It has such features as strong corrosion resistance, high mechanical strength, smooth surface, simple structure, small size and fewer wear parts. With longest service life, large air displacement and high degree of vacuum among equivalent products, it is an ideal product to substitute for SZ water ring pump and W reciprocating vacuum pump.
JW — RPP－65－280 — A
JW—— J(Unit code)W (horizontal)L (Vertical)RPP—— Material code ( FRPP)65—— inner diamater of inlet (65mm)280—— maximum pumping volume (280m3/h)A—— Modified
Model Ultimate vacuum Mpa Guarantee vacuum maximum pumping volume m3/h Model and power of the matching pump (KW) Mpa mmHg RPP-25-20 0.0985 0.098 735 20 40FP(D)-18 (1.5) RPP-32-40 0.0985 0.098 735 40 50FP(D)-22 (2.2) RPP-40-60 0.098 0.097 728 60 50FP(D)-25 ( 3 ) RPP-54-90 0.098 0.097 728 90 65FP(D)-28 ( 4 ) RPP-54-110 0.0985 0.0975 732 110 80FP(D)-30 (5.5) RPP-54-180 0.0993 0.098 735 180 80FP(D)-30 (5.5) RPP-54-220 0.0996 0.0984 738 220 100FP(D)-32 (15) RPP-65-280 0.0993 0.098 735 280 80FP(D)-32 (7.5) RPP-65-280A 0.0996 0.099 740 280 80FP(D)-32 (7.5) RPP-65-360 0.0995 0.098 735 360 100FP(D)-20 (11) RPP-80-360 0.0995 0.098 740 360 100FP(D)-20 (11) RPP-80-360A 0.0998 0.099 740 360 100FP(D)-20 (11) RPP-80-500 0.0995 0.098 735 500 100FP(D)-32 (15) RPP-80-500A 0.0996 0.099 740 500 100FP(D)-32 (15) RPP-80-700 0.0996 0.098 735 700 100FP(D)-50(30) Steam jet pump 0.1 0.0996 748 Steam-water series connection work with 180, 280, 360, 500; Air Consumption: 40kg/h Working Pressure: 0.3Mpa
