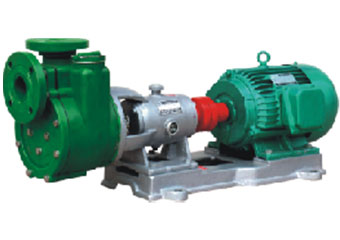

Product name:FV/P self-priming plastic pump
| Type:Centrifugal pump | ||
| Performance data | Flow range | 3-45m3/h |
| Lift range | 10-30m | |
| Medium temperature | -40°C＜T＜+135°C | |
| Environment temperature | Maximum 40°C | |
| Maximum working pressure | 3-4m | |
| Motor data | Matched power | 0.55-30KW |
| Voltage | 380V | |
| Frequency | 50-60HZ | |
| Number of revolutions | 2900/r/min | |
| Degree of protection | IP54/IP55 | |
| Insulation class | F | |
| Material | Pump body, pump cover, impeller | Engineering plastics |
| Pump shaft | 45 Steel | |
| Mechanical seal | Graphite, tungsten carbide, silicon carbide, cemented carbide, etc. | |
Xin’anjiang FZ self-priming centrifugal pump, featured with corrosion resistance and energy saving, is a patented product developed by our company and injection molded with PVDF and RPP ma
Characteristics of the pump: the priming liquid is required only before the startup for the first time and unnecessary afterwards. The liquid feeding can be intermittent during pumping as long as the medium is fed again within 15min. The mechanical seal requires no water cooling. It is easily operable, safe and free of leak and therefore a best product to substitute for immersible pump. PVDF material: airtight, nontoxic, nonpolar, oxidation resistant, antiaging, good mechanical property, resistant to strong oxidant, halogen, arene solvent, working temperature -40°C～135°C. RPP material: nonpolar, nontoxic, resistant to common acid, alkali and salt, working temperature -12°C～100°C.
- Mainly used to transport acid, alkali, salt and other corrosive liquids, but not for transport of certain ABS plastic have a significant effect on the chemicals, such as aromatic hydrocarbons, halogen
50 — F — V/P — Z — (D) - 22
50—— Inlet diameter (50mm)F—— Code of Anticorrosion PumpsV/P—— Material code (V PVDF, P FRPP)Z—— self-priming(D)—— straight22—— Lift (22m)
Model/Performance parameters Inlet/Outlet diameter Flow Lift Self-Priming Lift Motor power Rate of rotation 25FV/P-Z(D) - 10 25X25 3 10 3 0. 55 2900 32FV/P-Z(D) - 11 32X25 3. 5 11 3 0.75 2900 40FV/P-Z(D) - 18 40X32 10 18 3 1. 5 2900 50FV/P-Z(D) - 22 50X40 16 22 3 2. 2 2900 40FV/P-Z -1 8 40X32 10 18 3.5 1. 5 2900 40FV/P-Z - 25 40X32 18 25 4 3 2900 50FV/P-Z - 22 50X40 16 22 4 2.2 2900 50FV/P-Z - 28 50X40 20 28 4 4 2900 80FV/P-Z - 30 80X65 40 30 4 5. 5 2900 80FV/P-Z - 32 80X65 45 32 4 7. 5 2900
