Details
Your Location: Home >> Products >> Details

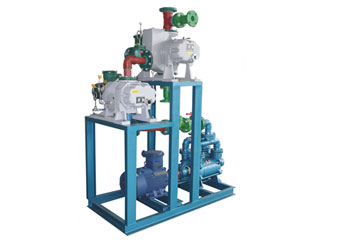

Product name:JZJ2B Roots water (liquid) ring ring vacuum unit
| Type:Vacuum equipment | ||
| Performance data | Flow range | m3/h |
| Lift range | ||
| Medium temperature | ||
| Environment temperature | ||
| Maximum working pressure | ||
| Motor data | Matched power | 1.1-110KW |
| Voltage | 380V | |
| Frequency | 50-60HZ | |
| Number of revolutions | 1450/2900/r/min | |
| Degree of protection | IP54 | |
| Insulation class | F | |
| Material | Pump body, pump cover, impeller | |
| Pump shaft | ||
| Mechanical seal | ||
- ZJ2B roots Water ring type is by what ZJ had roots pump unit as the main suction pump, Water ring 2 bv or roots - Water ring pump unit as the Backing pump of the pump groups. Besides can be used to ta
- ZJ2B vacuum unit with high efficiency and energy saving 2 bv water ring pump used for Backing pump, so than JZJ2S JZJ2B vacuum unit with high efficiency, compact structure, no leakage (2 bv pump for Mechanical seal design, different from the 2 sk pan-gen sealed), corrosion resistant (2 bv adopting Stainless steel or aluminum bronze impeller), a high Degree of protection, etc. Advantages. Roots vacuum pump have adopted the company to develop what ZJ had roots vacuum pump, our company will pump cavity and bearing cavity sealing was improved after what ZJ had roots vacuum pump in pumping large amounts of steam and various solvent process pump oil emulsion.
- Roots water ring vacuum unit of the Backing pump of the working liquid with water, also can use organic solvent (methanol, ethanol, xylene, acetone, etc. The organic solvents), or other liquid, and th
J— ZJ－2B－150 - 2.1
J—— Unit codeZJ—— code of main pump (roots)2B—— Code of Backing pump (2BV water-ring pump)150—— Pumping speed of main pump (roots)L/s2.1—— Code of pumping ratio
Model Pump Model Pumping speed
L/SMax suction pressure
PaExtreme pressure Power Main pump Backing pump Water-ring unit Oil-ring unit JZJ2B15-2 Z15 2BV2060 15 8000 267 80 1.65 JZJ2B30-2 JZ30 2BV2061 30 8000 2.25 JZJ2B30-1 JZ30 2BV5110 30 12000 4.75 JZJ2B70-2 JZ70 2BV5110 70 6000 5.5 JZJ2B70-1 JZ70 2BV5111 70 12000 7 JZJ2B150-2A JZ150 2BV5111 150 6000 8.5 JZJ2B150-2B JZ150 2BV5121 150 8000 10.5 JZJ2B150-1 JZ150 2BV5131 150 10000 14 JZJ2B300-2A JZ300 2BV5131 300 4000 15 JZJ2B300-2B JZ300 2BV5161 300 5000 19 JZJ2B30-2.1 JZ30 ZJ15/2BV2061 30 8000 25 0.8 2.8 JZJ2B70-2.1 JZ70 ZJ30/2BV5110 70 6000 6.25 JZJ2B150-2.1 JZ150 ZJ70/2BV5111 150 6000 10 JZJ2B150-4.1 JZ150 ZJ30/2BV5110 150 3000 7.75 JZJ2B300-2.1 JZ300 ZJ150/2BV5131 300 5000 18 JZJ2B300-2.2 JZ300 ZJ150/2BV5121 300 4000 14.5 JZJ2B300-4.1 JZ300 ZJ70/2BV5111 300 2000 11 JZJ2B600-4.1 JZ600 ZJ150/2BV5131 600 1500 19.5 JZJ2B600-2.2 JZ600 ZJ300/2BV5161 600 2000 24.5 JZJ2B1200-4.2 JZ1200 ZJ300/2BV5161 1200 1000 30 JZJ2B30-2.1.1 JZ30 ZJ15/ZJ15/2BV2061 30 8000 0.5 0.05 3.35 JZJ2B70-2.2.1 JZ70 ZJ30/ZJ15/2BV2061 70 4000 4.3 JZJ2B70-2.1.1 JZ70 ZJ30/ZJ30/2BV5110 70 6000 7 JZJ2B150-2.2.1 JZ150 ZJ70/ZJ30/2BV5110 150 3000 9.25 JZJ2B300-2.2.1 JZ300 ZJ150/ZJ70/2BV5111 300 3000 14 JZJ2B300-4.2.1 JZ300 ZJ70/ZJ30/2BV5110 300 1200 10.25 JZJ2B600-2.2.1 JZ600 ZJ300/ZJ150/2BV5131 600 2500 23.5 JZJ2B600-4.2.1 JZ600 ZJ150/ZJ70/2BV5111 600 1200 15.5 JZJ2B1200-4.2.1 Jz1200 ZJ300/ZJ150/2BV5131 1200 1000 29
