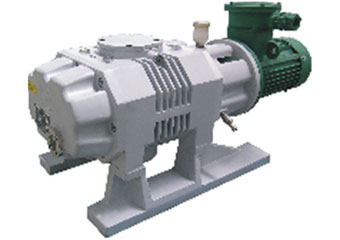

Xin’anjiang ZJC roots vacuum pump is a kind of volumetric vacuum pump keeping a pair of 8-shaped rotors, at a certain gap, rotating in reverse direction at identical speed within the pump shell to tak

The best merit of ZJC roots vacuum pump is that it obtains a high air suction rate when the inlet pressure is low. However, the pump can’t work alone and requires a backing vacuum pump connected in series. It starts working only when the pressure of the system pumped by the backing vacuum pump matches the allowed inlet pressure of roots vacuum pump. Besides, the roots vacuum pump shall not work under high differential pressure generally, or it will be damaged due to overload and overheating, so an appropriate backing pump shall be selected for the roots vacuum pump. A protective device is required. Please note that, after the roots vacuum pump is anticorrosion treated, the backing pump, if a water jet vacuum pump or anticorrosion water-ring vacuum pump, could pump out heavy steam contained caustic gas.

Model

Extreme pressure

Pumping speedL/S

Max. allowable pressure difference Pa

Inlet/outlet diameter

Power

Torr

ZJC-30

5X10-2

3.7X10-4

1.2X104

1.1

ZJC-70

5X10-2

3.7X10-4

1X104

100

2.2

ZJC-150

5X10-2

3.7X10-4

150

1.07X104

100

ZJC-300

5X10-2

3.7X10-4

300

7X103

150

ZJC-600

5X10-2

3.7X10-4

600

4.5X103

200

7.5

ZJC-1200

5X10-2

3.7X10-4

1200

5.3X103

250

Type:Vacuum equipment
Performance data	Range of Pumping speed
	Extreme pressure
	Medium temperature
	Environment temperature
	Maximum working pressure
Motor data	Matched power	1.1-110KW
	Voltage	380V
	Frequency	50-60HZ
	Number of revolutions	1450/2900/r/min
	Degree of protection	IP54
	Insulation class	F
Material	Pump body, pump cover, impeller
	Pump shaft
	Mechanical seal
